3.699 €

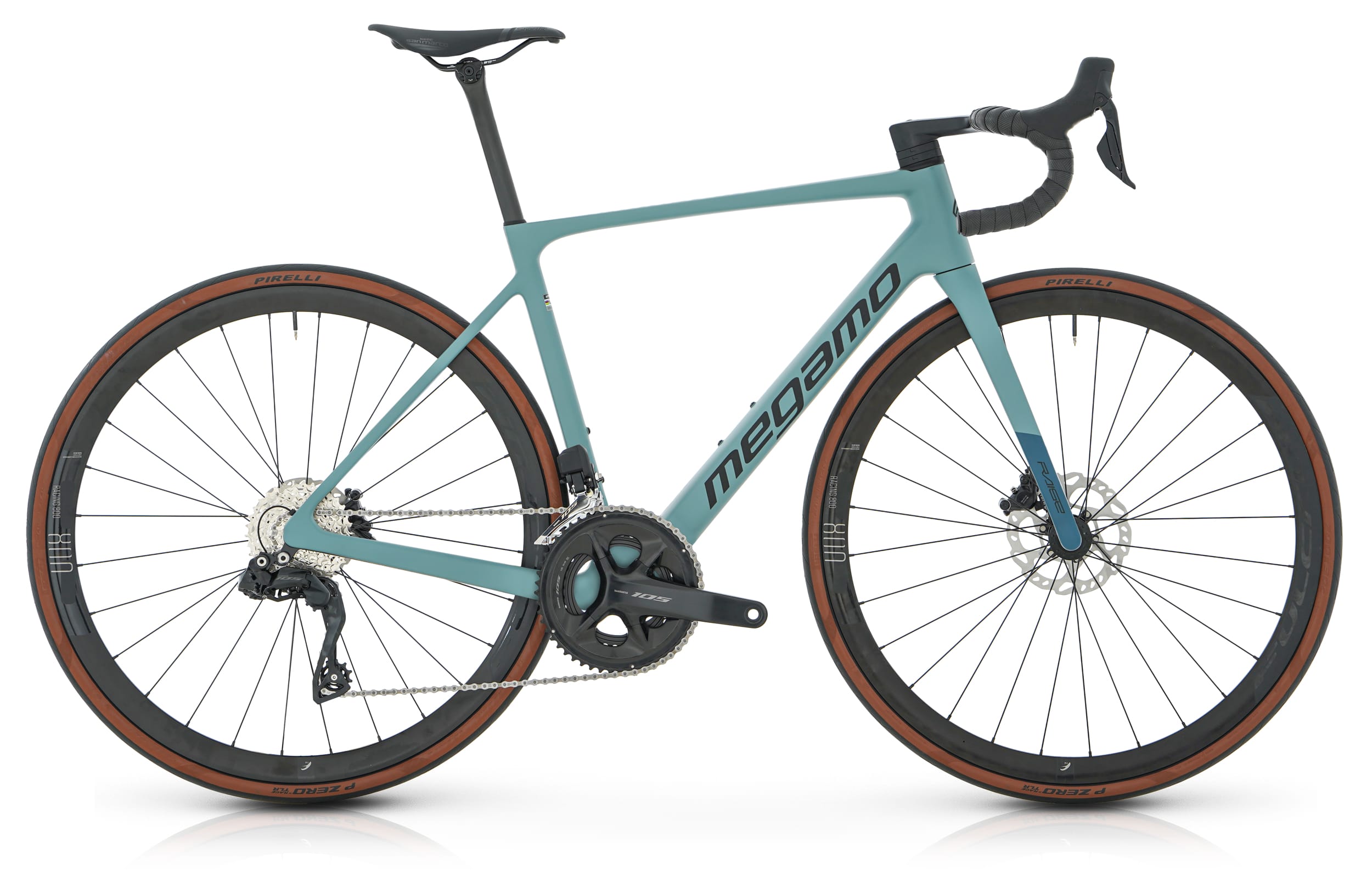

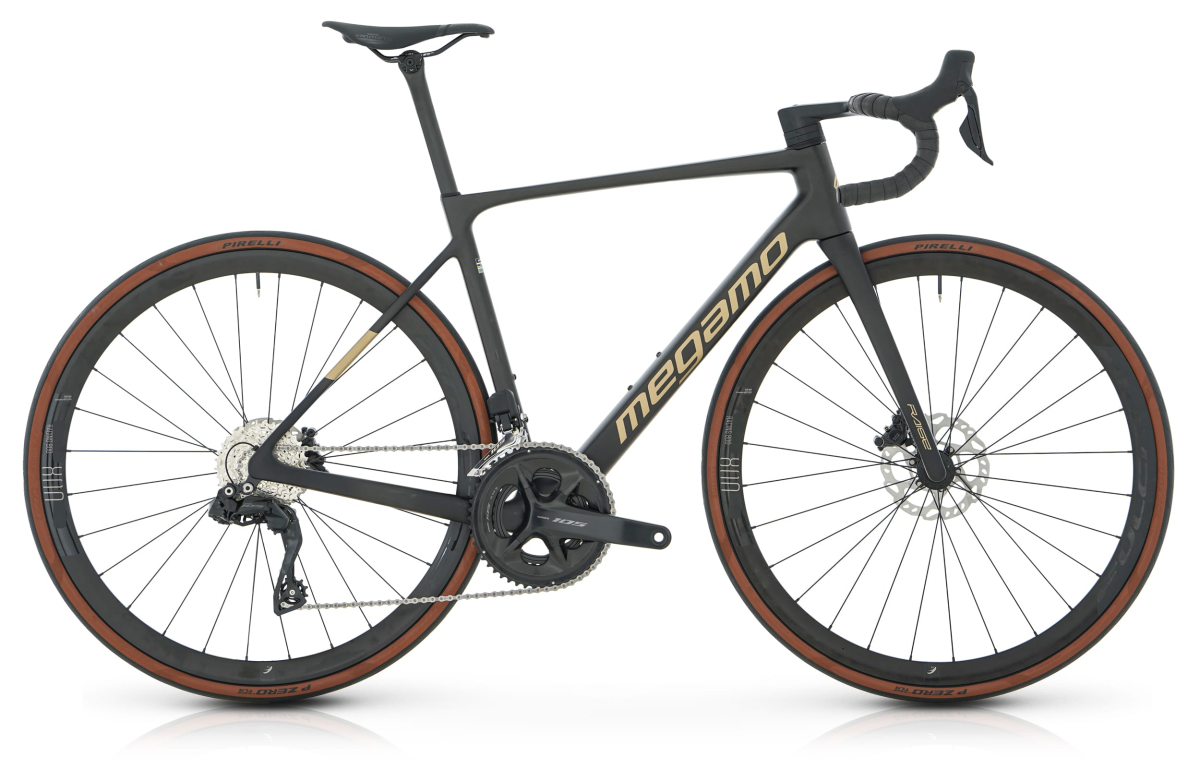

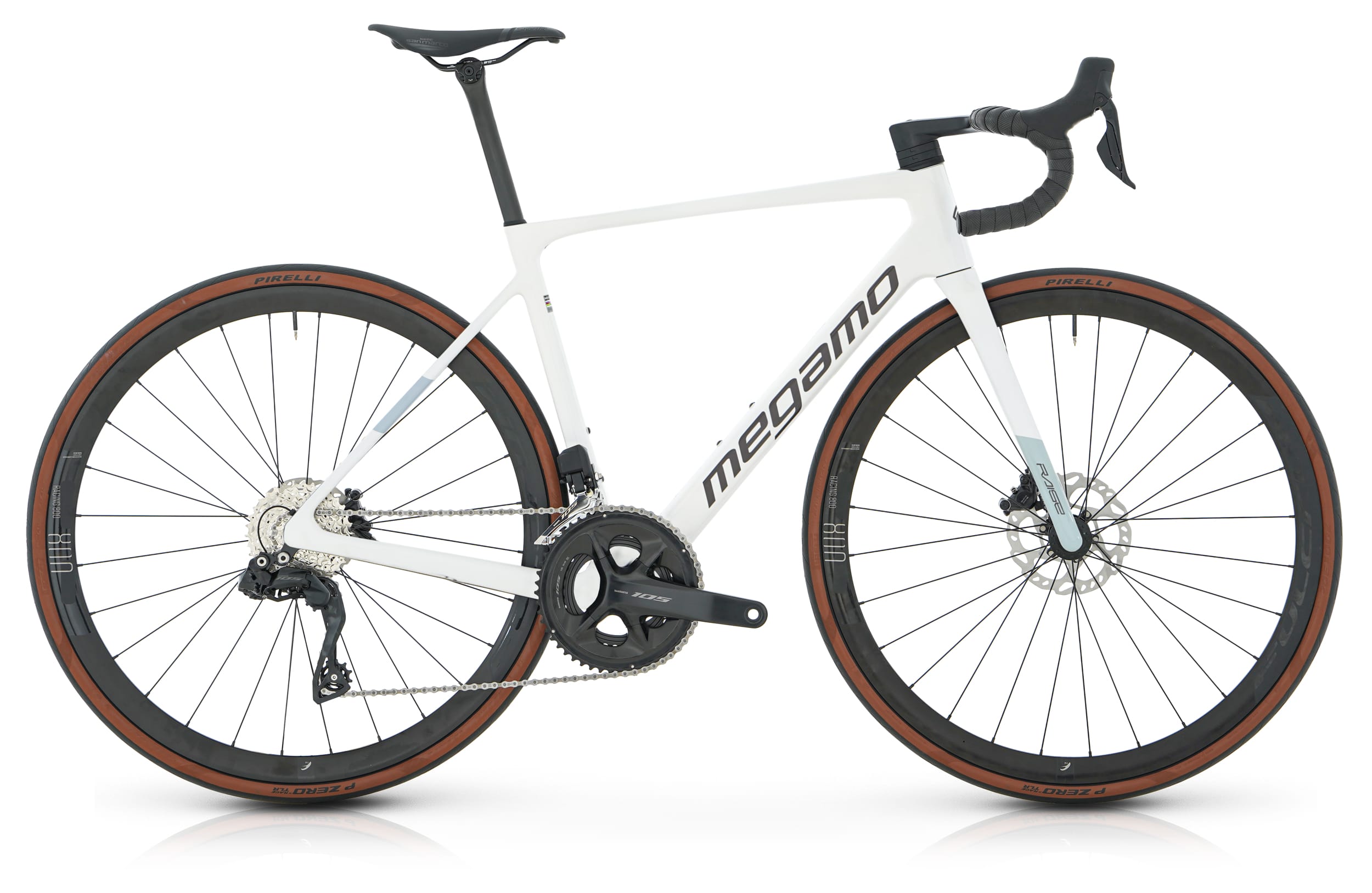

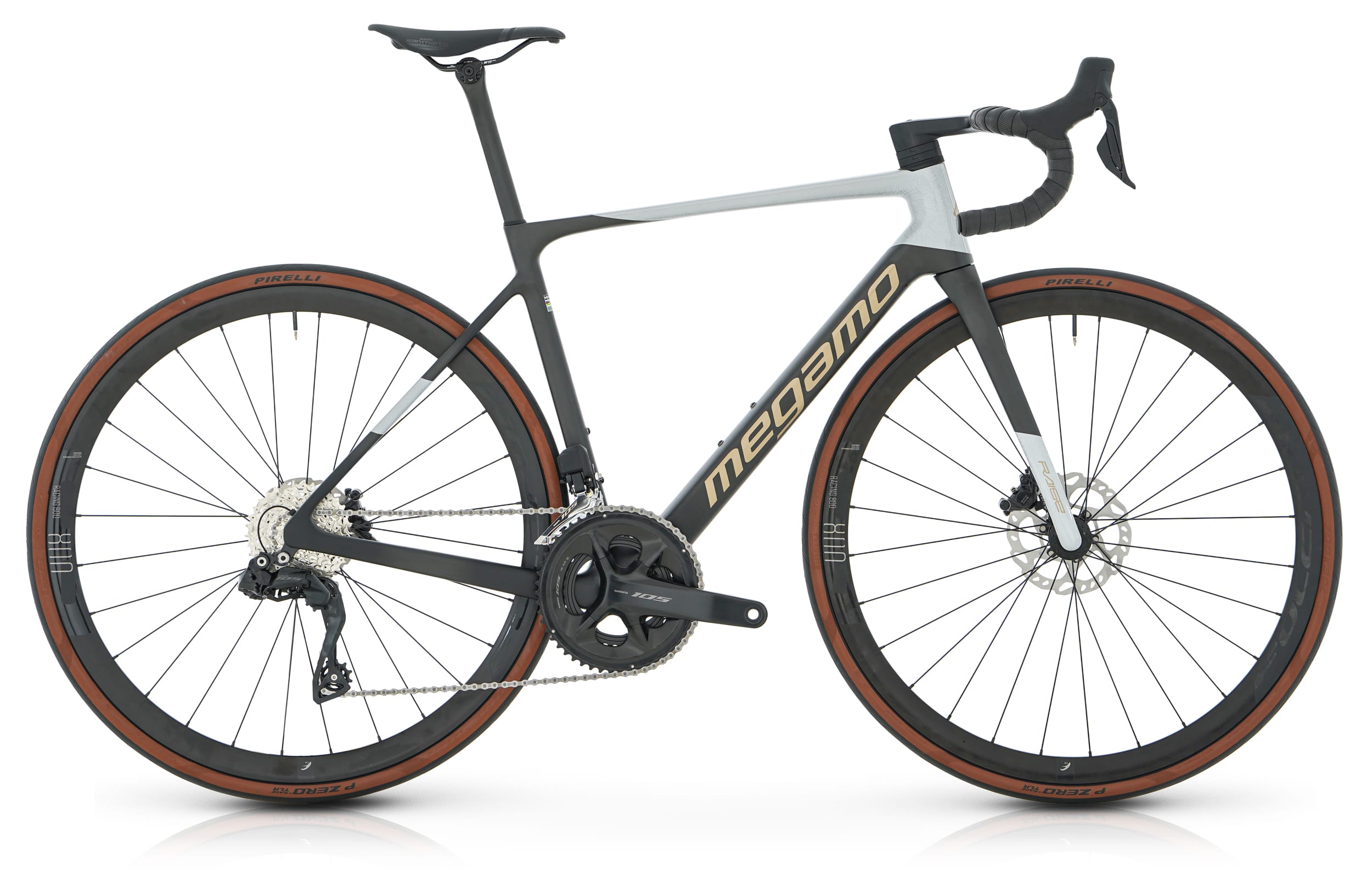

RAISE 15 2025

CARACTERÍSTICAS PRINCIPAIS

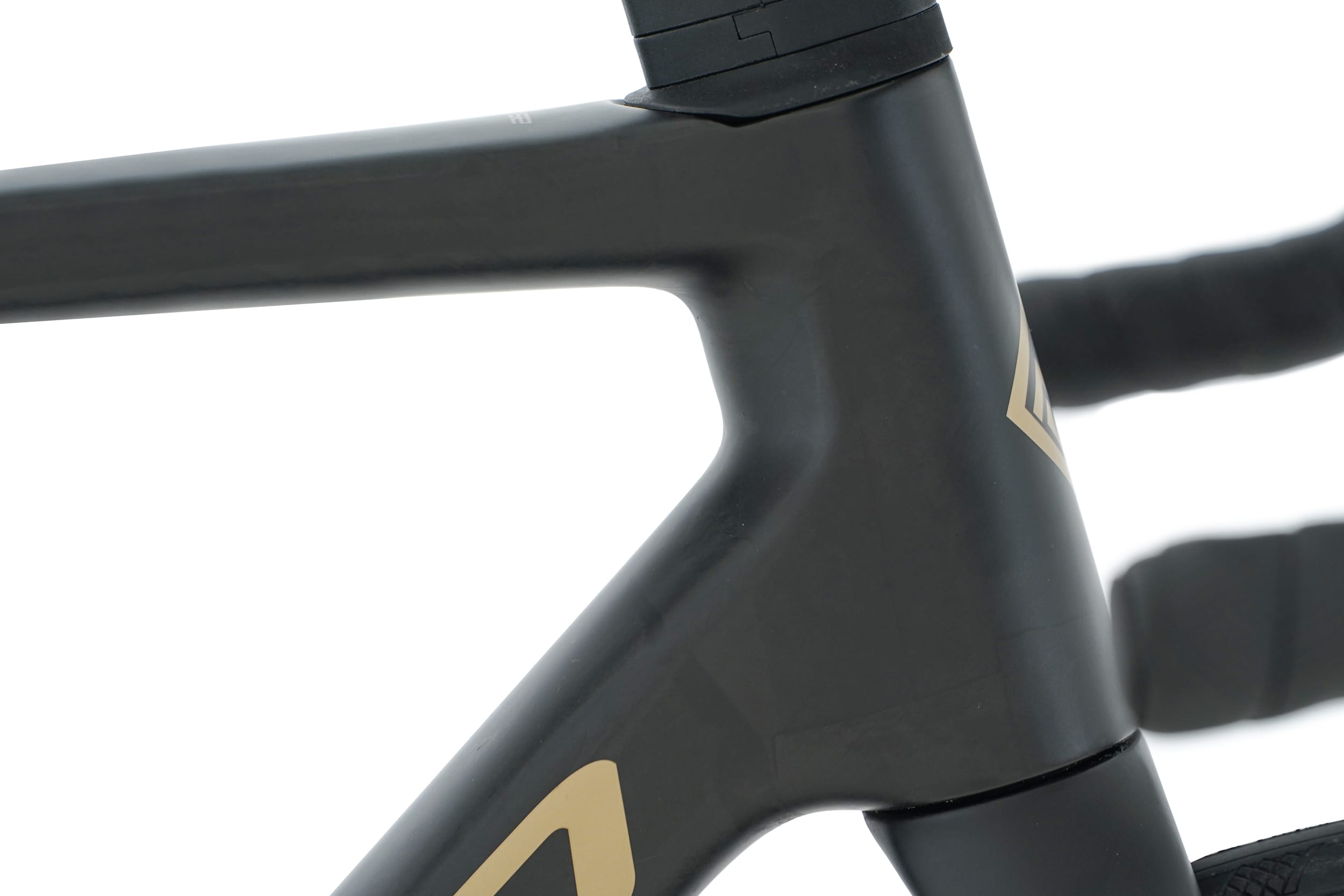

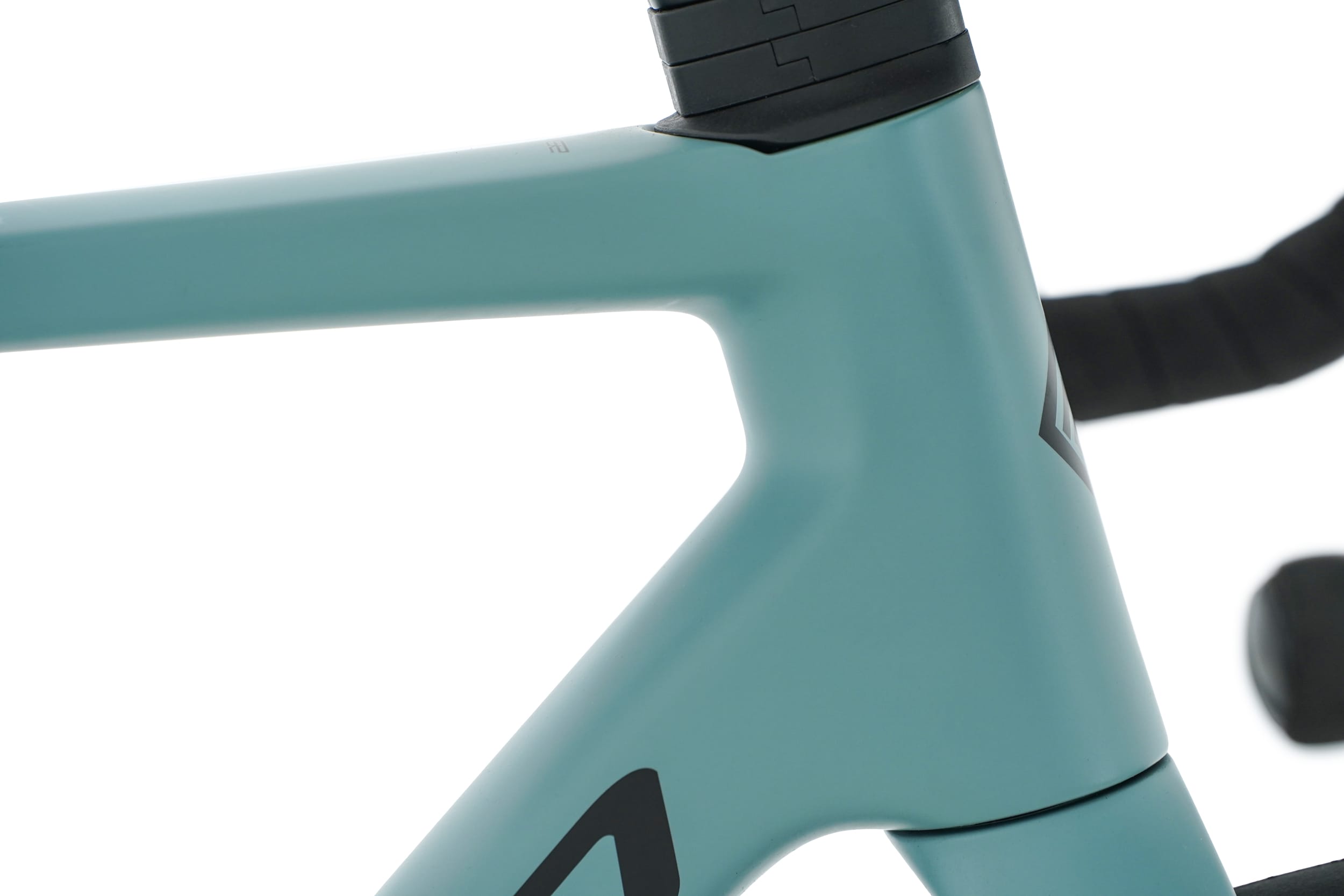

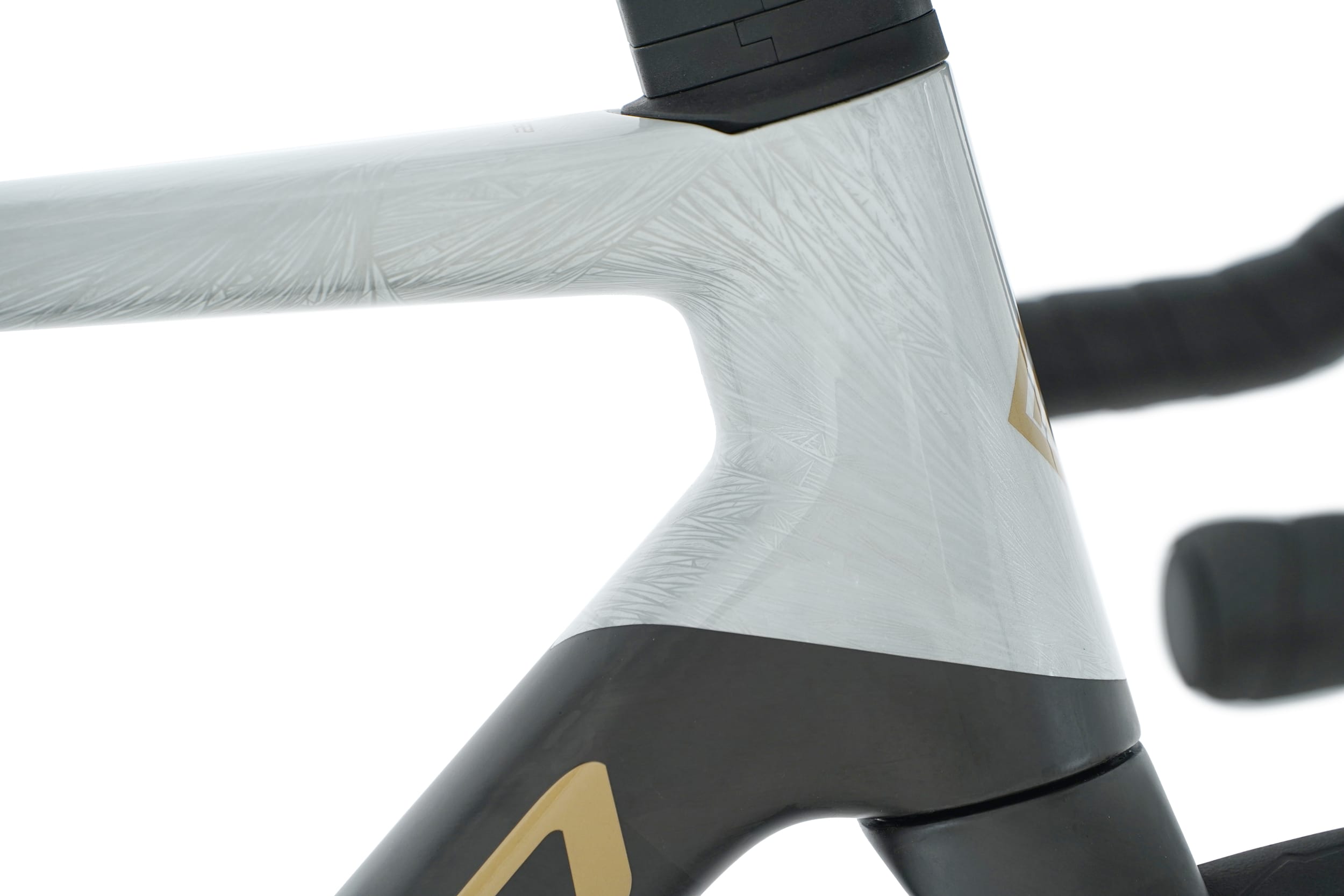

· Novo quadro Raise UCI de carbono ultra leve com cablagem totalmente interna
· Transmissão Shimano 105 Di2 12 velocidades
· Rodas Fulcrum RD800
TamanhoXSSMLXL
Preço3.699 €
Comparar modelo
Comparador de modelos

Informação técnica

Conjunto do quadro
Frame Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Fork Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Headset Totally Internal Cable routing
Transmissão
Desviador traseiro Shimano 105 Di2 R7150 12s
Leve del cambio Shimano 105 Di2 R7150 12s
Crankset Shimano 105 Di2 R7100 12s 36-52T
Cassette Shimano 105 Di2 R7100 12s 11-34T
Travões
Brakes Shimano 105 Di2 R7170 12s Hydraulic Disc
Rodas
Tires Pirelli P ZERO™ Race TLR Classic 30 - 622 SPEEDCore 127 tpi
Wheels Fulcrum Racing 800 DB
Componentes
Handlebar Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Seatpost Aerodinamic Advanced Carbon Seat Post
Seat Selle Italia Shortfit Open-fit Start Up 144

*Megamo reserva-se o direito de modificar qualquer componente, por outro de igual valor, se necessário, sem aviso prévio.

Geometria RAISE 15 (25)

    XS S M L XL
A
T/T 507 527 538  554 572
B
C/S 410 410 410 410 410
C
S/T 442 460 482 503 535
D
H/T 102 115 130 145 172
E
REACH 376 383 384 396 402
F
STACK 506 521 534 550 576
G
BB OFFSET 69 69 69 69 69
H
FRONT ANGLE 71,75° 72,5° 73° 73,5° 73,5°
I
REAR ANGLE 75.5º 74.5º 74º 74º 73.5º

    80 x 380 90 x 400 100 x 400 110 x 420 120 x 440
A
Stem Length 80 90 100 110 120
B
Width hoods 370 390 390 410 430
C
Width drops 393 413 413 433 453
D / E
Reach / Drop 81 / 130 81 / 130 81 / 130 81 / 130 81 / 130
F
Stem Angle 10.5º 10.5º 10.5º 10.5º 10.5º
G
FLARE 3.3º 3.3º 3.3º 3.3º 3.3º
H
GPS HOLES 27 27 27 27 27
I
HOLES TO FRONT 21 21 21 21 21
