1. Seleziona il modello e la taglia

Black





Blue





Bone White - (Matt)





WHITE ICE






2. Articoli correlati

3.699 €

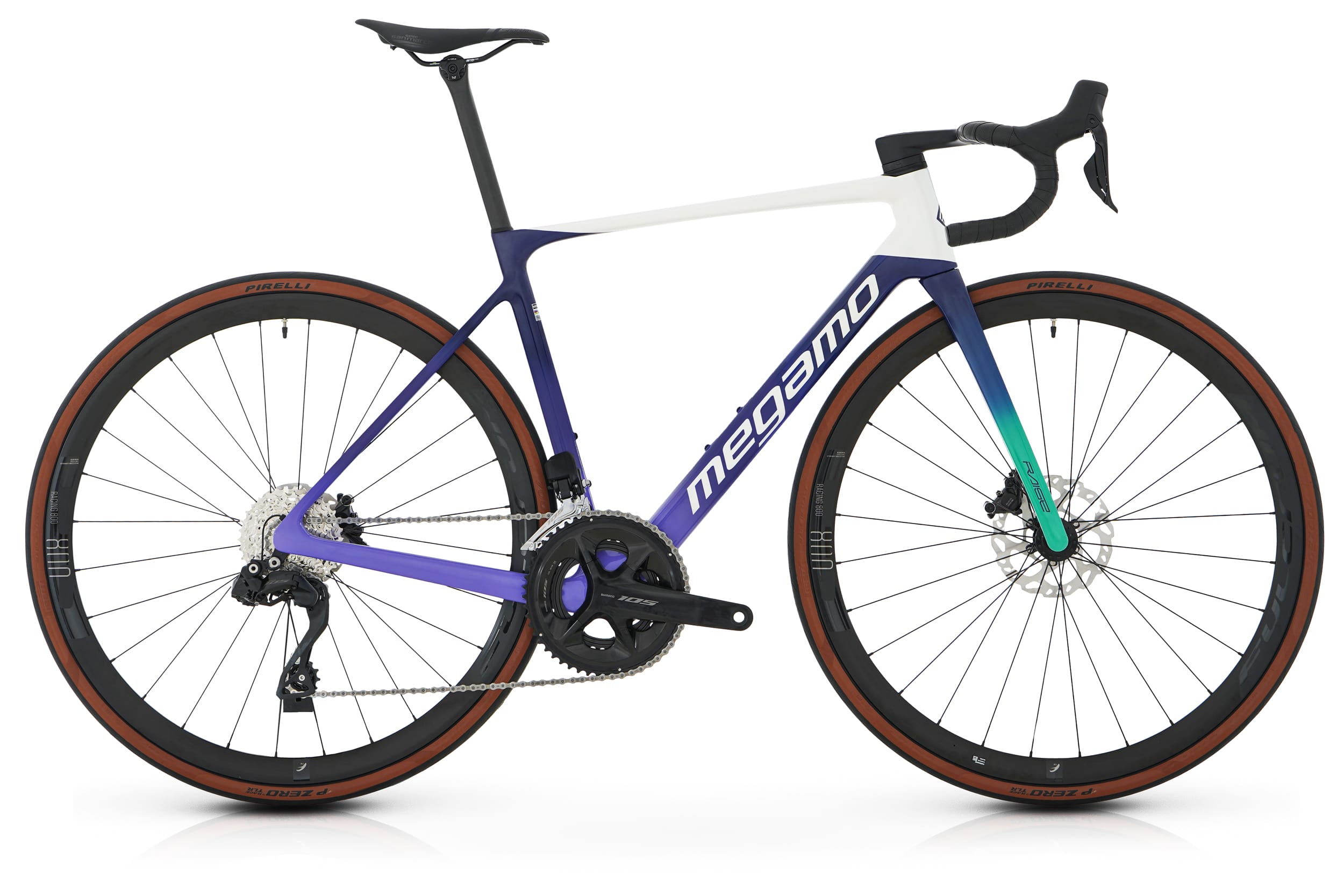

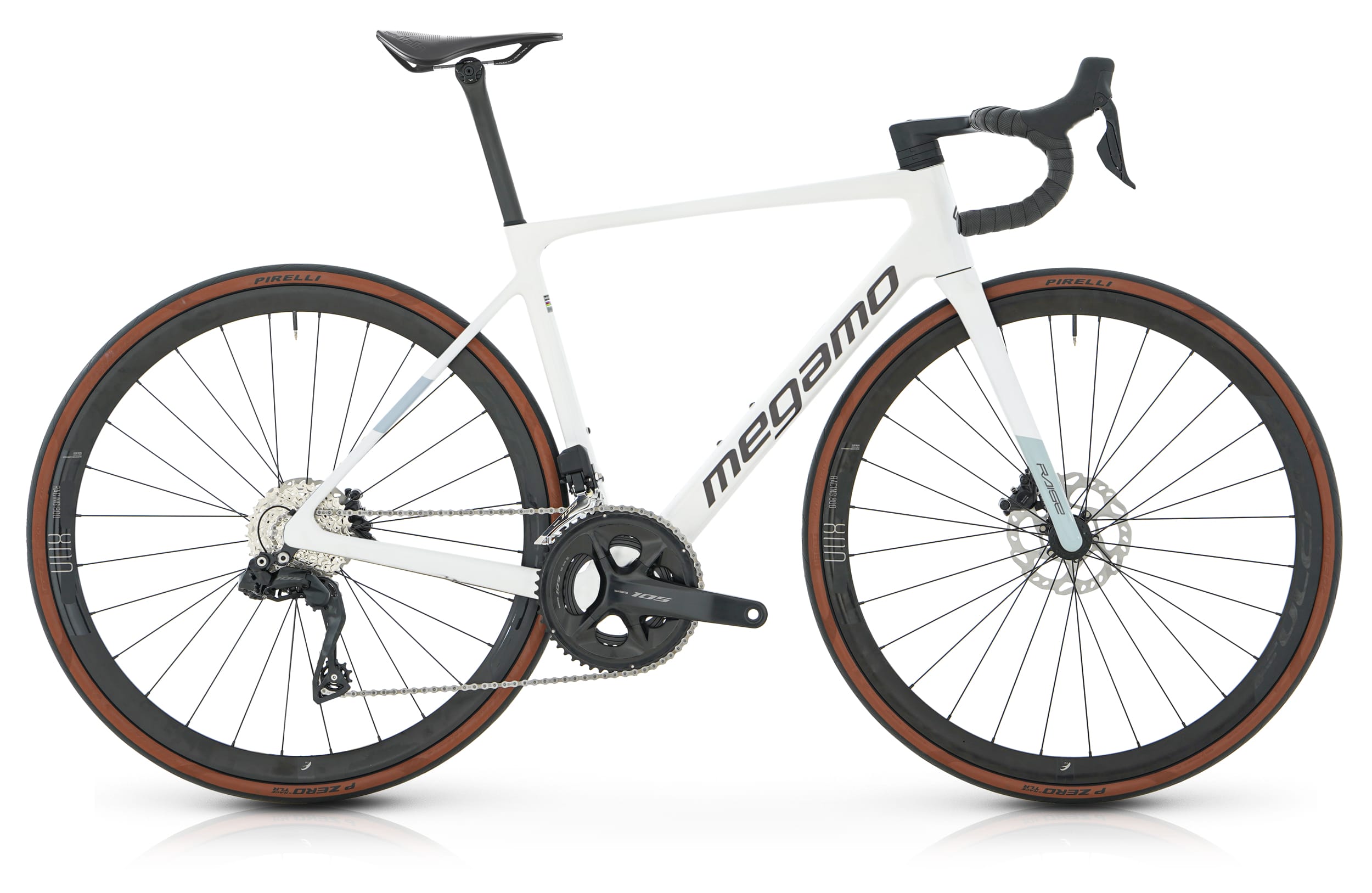

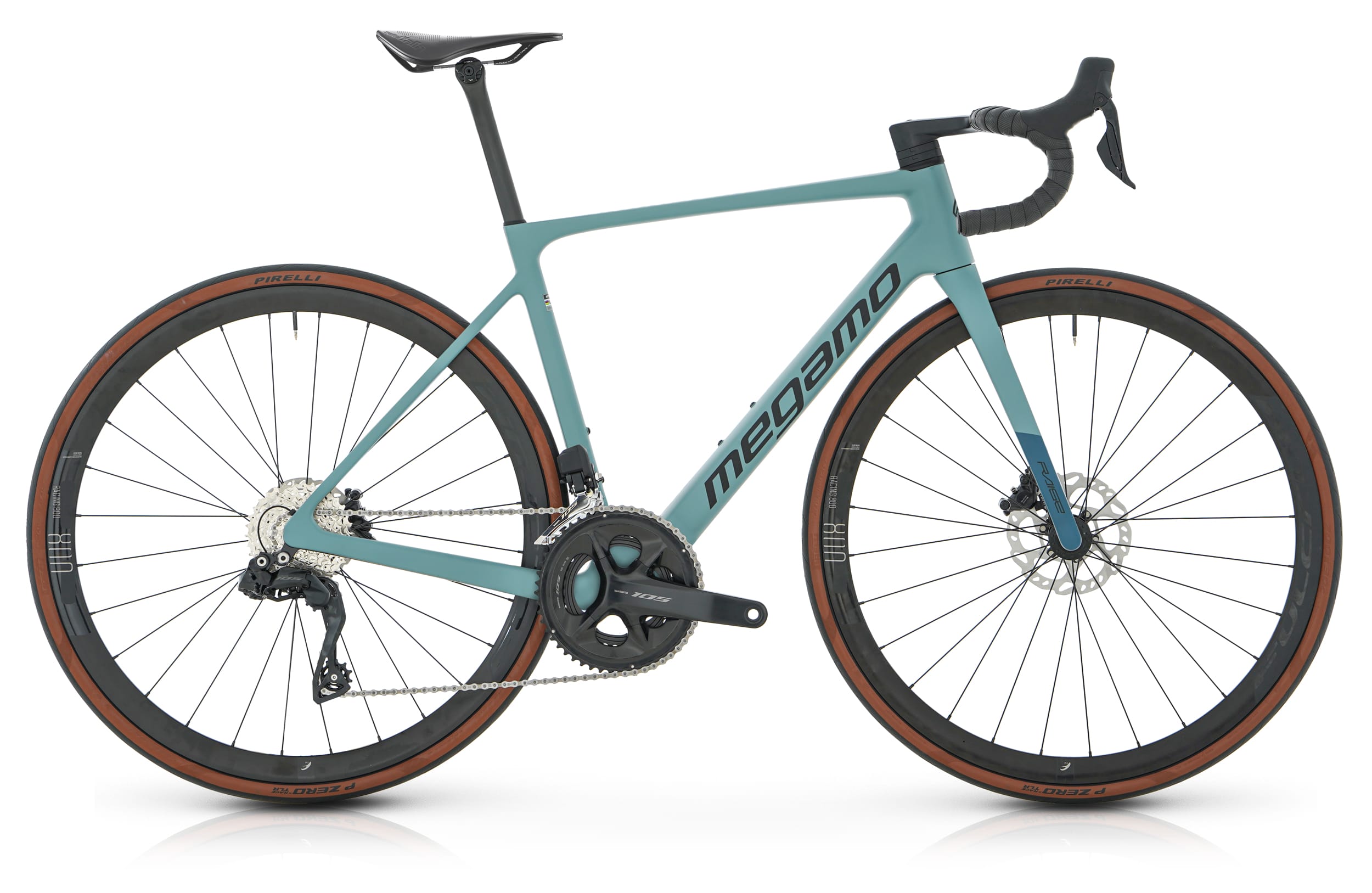

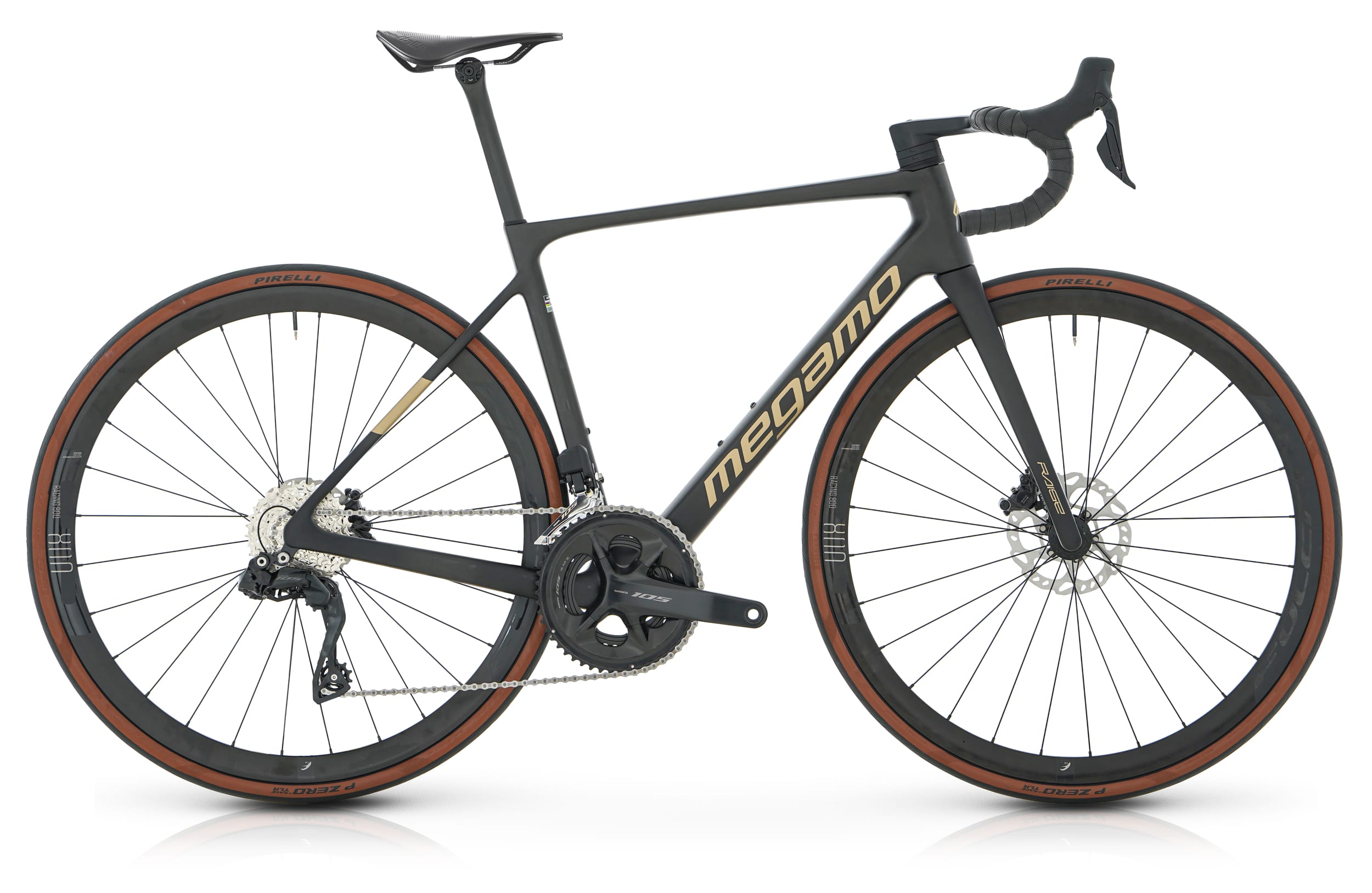

RAISE 15 2025

CARATTERISTICHE PRINCIPALI
· Nuovo telaio Raise UCI in carbonio ultraleggero con cablaggio totalmente interno
· Trasmissione Shimano 105 Di2 a 12 velocità
· Ruote Fulcrum RD800
DimensioneXSSMLXL
Prezzo3.699 €
Trova il tuo negozio Confronta il modello
Comparatore di modelli

Informazioni tecniche

Kit telaio
Telaio Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Forcella Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Serie sterzo Totally Internal Cable routing
Trasmissione
Deragliatore Posteriore Shimano 105 Di2 R7150 12s
Maniglie cambiano Shimano 105 Di2 R7150 12s
Guarnitura Shimano 105 Di2 R7100 12s 36-52T
Cassette Shimano 105 Di2 R7100 12s 11-34T
Freni
Frenos Shimano 105 Di2 R7170 12s Hydraulic Disc
Route
Pneumatici Pirelli P ZERO™ Race TLR Classic 30 - 622 SPEEDCore 127 tpi
Ruote Fulcrum Racing 800 DB
Componenti
Manubrio Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Reggisella Aerodinamic Advanced Carbon Seat Post
Sede Selle Italia Shortfit Open-fit Start Up 144

*egamo si riserva il diritto di modificare qualsiasi componente, se necessario con uno di pari valore, senza preavviso.

Geometria RAISE 15 (25)

    XS S M L XL
A
T/T 507 527 538  554 572
B
C/S 410 410 410 410 410
C
S/T 442 460 482 503 535
D
H/T 102 115 130 145 172
E
REACH 376 383 384 396 402
F
STACK 506 521 534 550 576
G
BB OFFSET 69 69 69 69 69
H
FRONT ANGLE 71,75° 72,5° 73° 73,5° 73,5°
I
REAR ANGLE 75.5º 74.5º 74º 74º 73.5º

    80 x 380 90 x 400 100 x 400 110 x 420 120 x 440
A
Stem Length 80 90 100 110 120
B
Width hoods 370 390 390 410 430
C
Width drops 393 413 413 433 453
D / E
Reach / Drop 81 / 130 81 / 130 81 / 130 81 / 130 81 / 130
F
Stem Angle 10.5º 10.5º 10.5º 10.5º 10.5º
G
FLARE 3.3º 3.3º 3.3º 3.3º 3.3º
H
GPS HOLES 27 27 27 27 27
I
HOLES TO FRONT 21 21 21 21 21
