Frame | Aluminium E-Bike Specific Frame, Full Integratted Battery, Central motor |
 |
Fork | Suntour 32 XCM ATB, 100mm |
 |
Headset | FSA tapered |
 |
Motor | Megamo Central Motor M-PW 80Nm, 250W, Torque Sensor |
 |
Battery | Integrated LI-ION Battery, 630 Wh |
 |

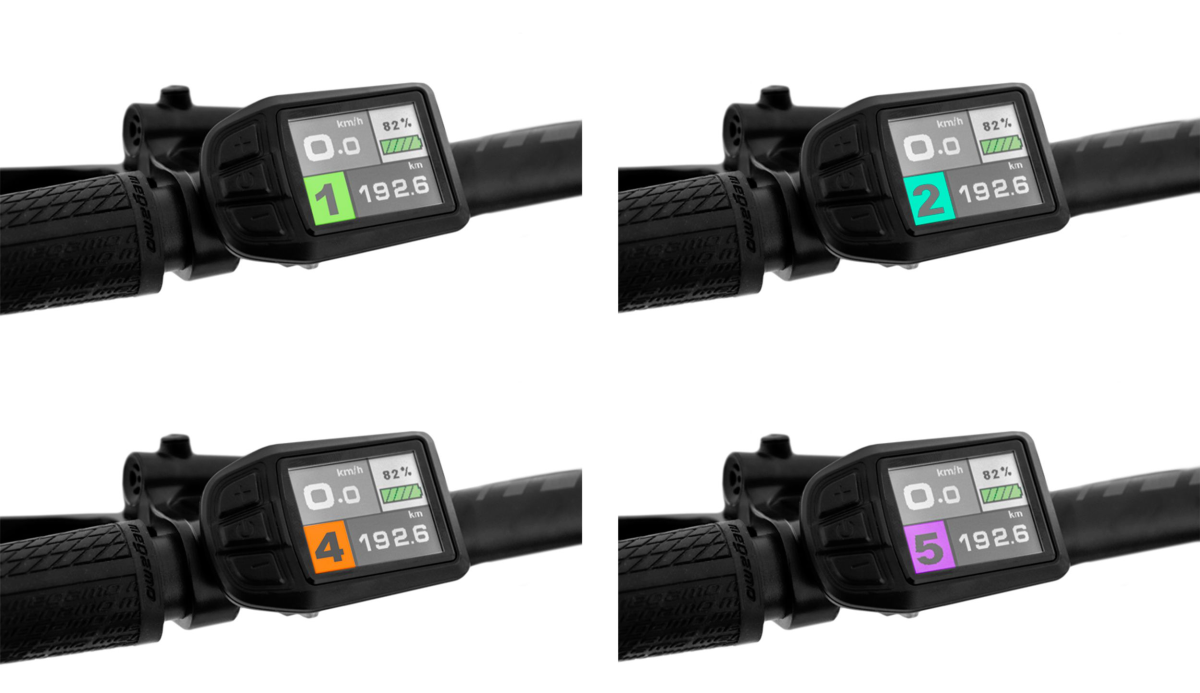

Display | LCD Screen panel 5-levels |
 |
Rear Derailleur | Shimano CUES U4000, Shadow 9-Speed |
 |
Shifters | Shimano CUES U4000 Rapidfire Plus, 9-Speed |
 |
Crankset | FSA Chainring 36T 9-Speed, Crankset 170mm |
 |
Cassette | Shimano CUES LG400, 11-36T |
 |
Brakes | Shimano MT200 Hydraulic Disc, 180mm |
 |
Tires | Maxxis 29 x 2.2 Ikon for M, L size / 27.5 x 2.1 for S size |
 |
Hubs | Megamo Hubs, Front axle 9 x 100 mm, Rear axle 9 x 135 mm with Quick Release |
 |
Wheels | Megamo 29 FW Disc Aluminium rim for M, L size / Megamo 27.5 FW Disc Aluminium rim for S size |
 |
Handlebar | Megamo Alloy 31,8 x 720 mm, 12 mm Rise, 6º Back Sweep |
 |
Stem | Satori Viper 3D Forged 31,8, ±7º Rise / S, M size 70 mm / L size 90 mm |
 |
Seatpost | Megamo alloy Ø 30.9 mm / S, M size 350 x 2,2 mm / L size 400 x 2,6 mm |
 |
Seat | Megamo E-Bike Confort+ |
 |
Front light | Spanninga Front Light |
 |
Rear light | Spanninga Rear Light |
 |
Rack | Luggage carrier |
 |
Fender | SKS PET A 56mm R Mudguard |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
