3.499 €

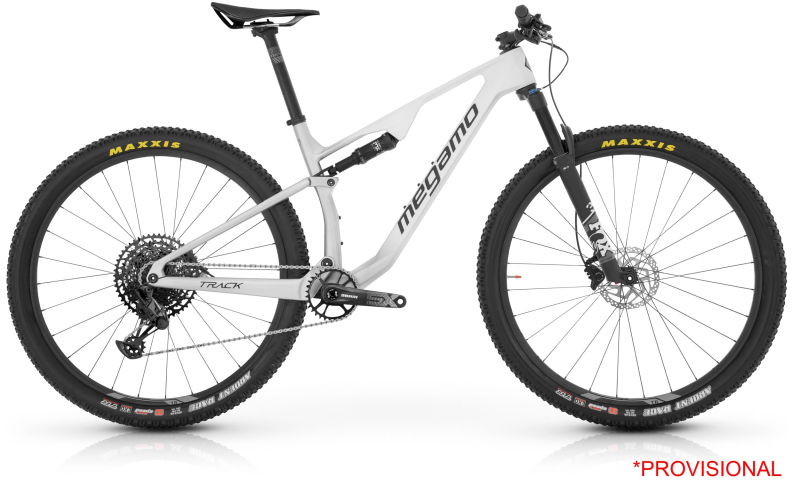

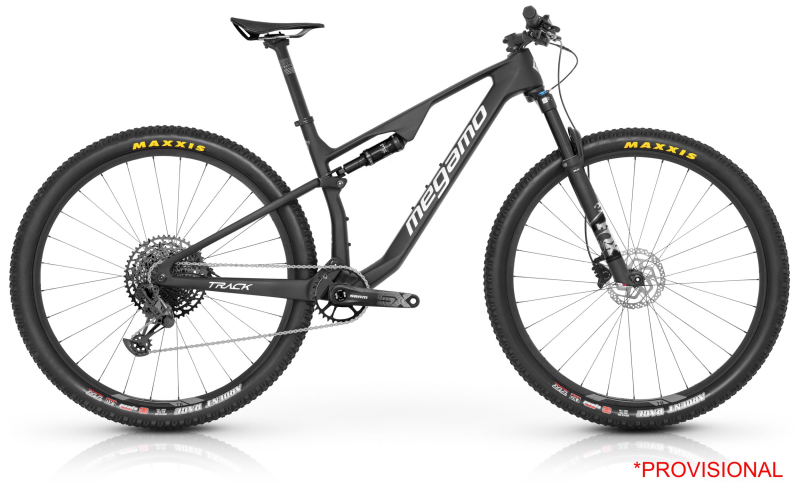

TRACK 10 2023

KEY FEATURES
· new frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
· Fork Fox 32 Rhythm 100mm Travel, Remote Lockout, 15x110 Boost
· Rear Shock Fox DPS Performance Elite, 100mm Travel 190x40, 3 positions Remote Lockout control
· Sram SX 12-speed
· Wheels Ready GR 25 TR - 15x110 / 12x148 Boost
· Brakes Shimano MT-500 Hydraulic Disc
· Integrated Megamo carbon handlebar
Wheel29"SizeSMLXL
Price3.499 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
Fork Fox 32 Rhythm, Remote Lockout, 15x110 Boost, Travel 100mm
Shock Fox Float DPS Performance Elite, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 100mm 190x40mm
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Sram SX Eagle 12s
Shifters Sram SX Eagle 12s
Crankset Sram SX Eagle 12s 32t
Cassette Sram SX Eagle 12s 11-50t
Brakes
Brakes Shimano MT-500 Hydraulic Disc
Wheels
Tires Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120tpi
Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Wheels Ready GR 25 TR - 15x110 / 12x148 Boost
Components
Handlebar Megamo Alloy 31,8
Stem Megamo Alloy 31,8
Seatpost Megamo Alloy 31,6
Seat Selle Italia Model X Superflow

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

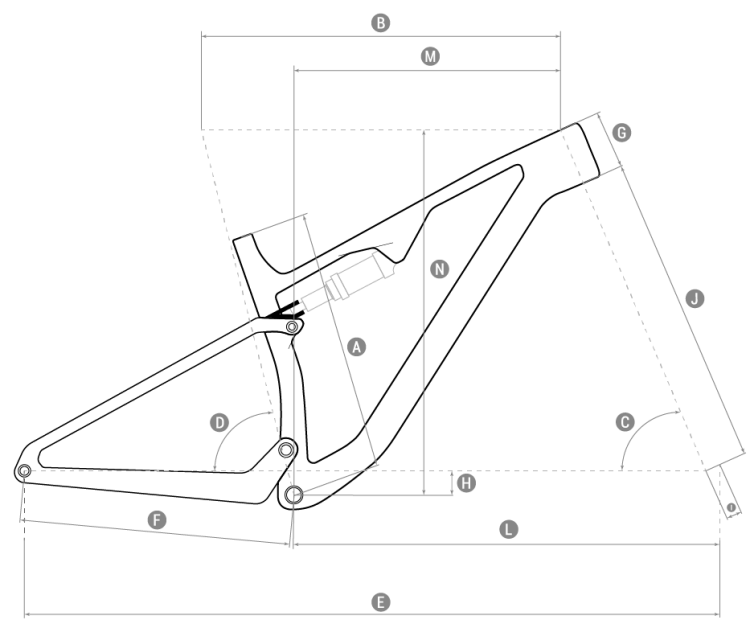

Geometry TRACK 10 (23)

    S M L XL
A
S/T 422 441 482 520
B
T/T 559 584 610 643
C
H/T angle 67.5º 67.5º 67.5º 67.5º
D
s/T angle 76.7º 76.7º 76.7º 76.7º
E
wheelbase 1124 1149 1180 1213
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 43 43 43 43
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 530 530 530 530
K
FORK HEIGHT (20% sag) 506 506 506 506
L
FRONT WHEEL - BB 695 720 751 784
M
REACH 420 444 469 495
N
STACK 592 592 605 624
